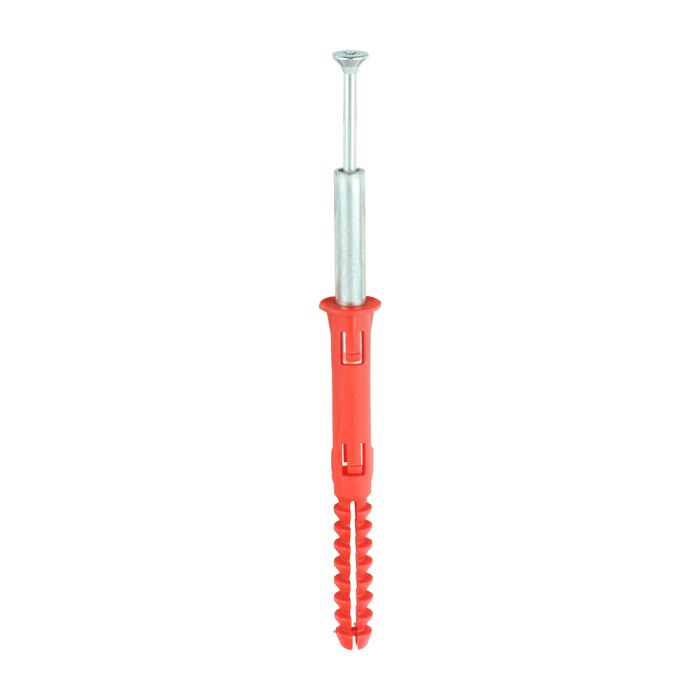

Corefix Dot & Dab Wall Fixing 5.0 X 100mm MINI PACK (4 Per Pk) CFX004T
SKU
JPM-10005167
This highly effective and innovative product was developed to safely secure heavy loads including cabinets and brackets to dot and dab plasterboard walls or board supported on battens. Quick to install, this patented product works by securing the load to the brick or block behind the board, bridging the problematic gap that dot and dab creates, by way of a zinc plated steel tube insert.
Suitable for most modern homes with plasterboard / dot & dab walls
Trusted and independently tested
Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver
For all wall types, brick, block and light weight concrete
Plug Dia. mm : 10
Plug Length mm : 95
Screw Size mm : 5.0 x 100
Drill Hole Dia. mm : 10.0
Max Fixture Thickness mm : 10
Min Drill Hole Depth mm : 100
Suitable for most modern homes with plasterboard / dot & dab walls
Trusted and independently tested
Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver
For all wall types, brick, block and light weight concrete
Plug Dia. mm : 10
Plug Length mm : 95
Screw Size mm : 5.0 x 100
Drill Hole Dia. mm : 10.0
Max Fixture Thickness mm : 10
Min Drill Hole Depth mm : 100
Show more +
This highly effective and innovative product was developed to safely secure heavy loads including cabinets and brackets to dot and dab plasterboard walls or board supported on battens. Quick to install, this patented product works by securing the load to the brick or block behind the board, bridging the problematic gap that dot and dab creates, by way of a zinc plated steel tube insert.
Suitable for most modern homes with plasterboard / dot & dab walls
Trusted and independently tested
Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver
For all wall types, brick, block and light weight concrete
Plug Dia. mm : 10
Plug Length mm : 95
Screw Size mm : 5.0 x 100
Drill Hole Dia. mm : 10.0
Max Fixture Thickness mm : 10
Min Drill Hole Depth mm : 100
Suitable for most modern homes with plasterboard / dot & dab walls
Trusted and independently tested
Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver
For all wall types, brick, block and light weight concrete
Plug Dia. mm : 10
Plug Length mm : 95
Screw Size mm : 5.0 x 100
Drill Hole Dia. mm : 10.0
Max Fixture Thickness mm : 10
Min Drill Hole Depth mm : 100
Features
| Manufacturer Name | T I MIDWOOD & CO LTD |
|---|---|
| Product Finish | Zinc |
| Manufacturer Bullet 10 | Min Drill Hole Depth mm : 100 |
| Length mm | 100mm |
| Product Material | Carbon Steel Screw, Impact Resistant PP Copolymer Plug, Carbon Steel Core |
| Product Net Weight kg | 0.08 |
| Manufacturer Bullet 1 | Suitable for most modern homes with plasterboard / dot & dab walls |
| Manufacturer Bullet 2 | Trusted and independently tested |
| Manufacturer Bullet 3 | Fast installation, no specialist tools required, drill, 10mm bit, hammer & screwdriver |
| Manufacturer Bullet 4 | For all wall types, brick, block and light weight concrete |
| Product Size | 5.0 x 100 |
| Manufacturer Bullet 5 | Plug Dia. mm : 10 |
| Packaged Length mm | 201mm |
| Manufacturer Bullet 6 | Plug Length mm : 95 |
| Packaged Width mm | 82mm |
| Manufacturer Bullet 7 | Screw Size mm : 5.0 x 100 |
| Packaged Weight kg | 0.08 |
| Pallet Cage Width mm | 196mm |
| Manufacturer Bullet 8 | Drill Hole Dia. mm : 10.0 |
| Pallet Cage Length mm | 390mm |
| Pallet Cage Height mm | 164mm |
| Manufacturer Bullet 9 | Max Fixture Thickness mm : 10 |
| Pallet Cage Weight kg | 4.58 |
| Pallet Cage Barcode | 5056110852461 |
