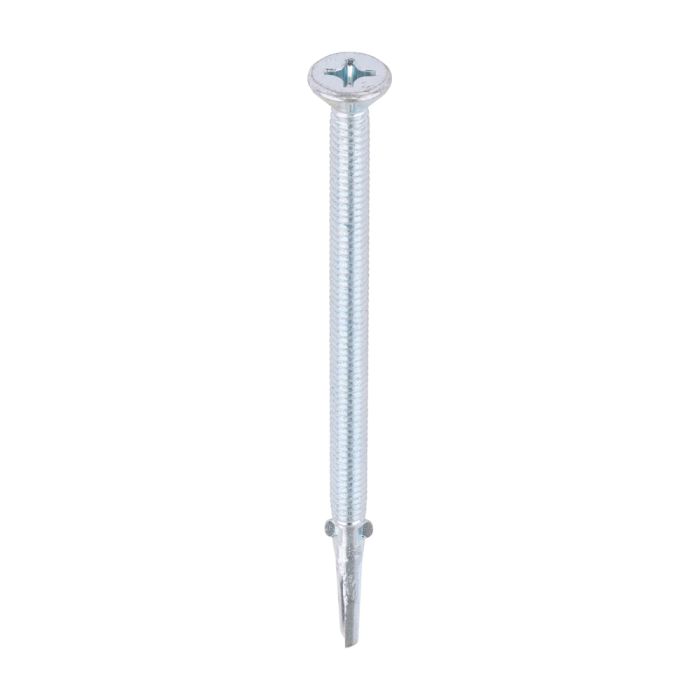

Wing Tip Self Drill Timber To Heavy Steel 5.5x100mm Zinc HW100B 100box

SKU
JPM-10001245
Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.



Recess Type : Phillips

Point Type : Self-Drilling No.5

Effective Thread Length mm : 63

Max Drilling Thickness mm : 12.0

To Suit Timber mm : 64 - 78
£21.36 £17.80
/ Each

Sign in or Register for trade prices
Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.



Recess Type : Phillips

Point Type : Self-Drilling No.5

Effective Thread Length mm : 63

Max Drilling Thickness mm : 12.0

To Suit Timber mm : 64 - 78
Features
More Information
Manufacturer Name T I MIDWOOD & CO LTD
Product Finish Zinc
Length mm 100mm
Width mm 5.5mm
Product Material Case: Core Hardened Carbon Steel
Product Net Weight kg 1.42
Manufacturer Bullet 1 Recess Type : Phillips
Manufacturer Bullet 2 Point Type : Self-Drilling No.5
Manufacturer Bullet 3 Effective Thread Length mm : 63
Manufacturer Bullet 4 Max Drilling Thickness mm : 12.0
Product Size 5.5mm x 100mm
Manufacturer Bullet 5 To Suit Timber mm : 64 - 78
Packaged Length mm 135mm
Packaged Width mm 90mm
Product Certifications BS EN 10666 (DIN 7504)
Packaged Weight kg 1.42
Pallet Cage Width mm 279mm
Pallet Cage Length mm 394mm
Pallet Cage Height mm 206mm
Pallet Cage Weight kg 23.04
Pallet Cage Barcode 5056110834061
