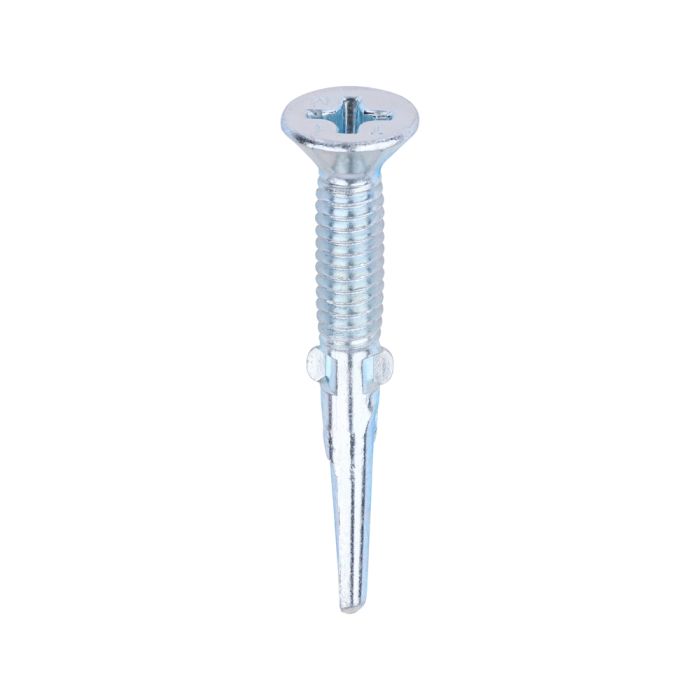

Wing Tip Self Drill Timber To Heavy Steel 5.5x45mm Zinc HW45B 200/box

SKU
JPM-10001242
Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.



Recess Type : Phillips

Point Type : Self-Drilling No.4

Effective Thread Length mm : 15

Max Drilling Thickness mm : 12.0

To Suit Timber mm : ≤13
£18.42 £15.35
/ Price Per Box

Sign in or Register for trade prices
Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.



Recess Type : Phillips

Point Type : Self-Drilling No.4

Effective Thread Length mm : 15

Max Drilling Thickness mm : 12.0

To Suit Timber mm : ≤13
Features
More Information
Manufacturer Name T I MIDWOOD & CO LTD
Product Finish Zinc
Length mm 45mm
Width mm 5.5mm
Product Material Case: Core Hardened Carbon Steel
Product Net Weight kg 1.285
Manufacturer Bullet 1 Recess Type : Phillips
Manufacturer Bullet 2 Point Type : Self-Drilling No.4
Manufacturer Bullet 3 Effective Thread Length mm : 15
Manufacturer Bullet 4 Max Drilling Thickness mm : 12.0
Product Size 5.5mm x 45mm
Manufacturer Bullet 5 To Suit Timber mm : ≤13
Packaged Length mm 135mm
Packaged Width mm 90mm
Product Certifications BS EN 14592:2008 BS EN 10666 (DIN 7504)
Packaged Weight kg 1.285
Pallet Cage Width mm 262mm
Pallet Cage Length mm 294mm
Pallet Cage Height mm 218mm
Pallet Cage Weight kg 19.1
Pallet Cage Barcode 5055893331163
