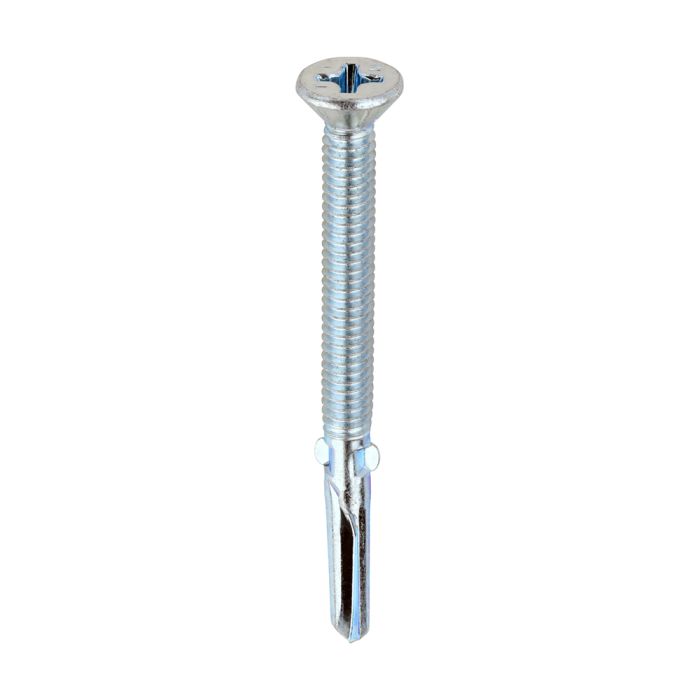

Wing Tip Self Drill Timber To Heavy Steel 5.5x65mm Zinc HW65B 200/box

SKU
JPM-10001243
Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.



Recess Type : Phillips

Point Type : Self-Drilling No.5

Effective Thread Length mm : 31

Max Drilling Thickness mm : 12.0

To Suit Timber mm : 14 - 29
£26.34 £21.95
/ Each

Sign in or Register for trade prices
Specifically designed to attach wood to heavy section steel (Max. 12mm). Metric thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal.



Recess Type : Phillips

Point Type : Self-Drilling No.5

Effective Thread Length mm : 31

Max Drilling Thickness mm : 12.0

To Suit Timber mm : 14 - 29
Features
More Information
Manufacturer Name T I MIDWOOD & CO LTD
Product Finish Zinc
Length mm 65mm
Width mm 5.5mm
Product Material Case: Core Hardened Carbon Steel
Product Net Weight kg 1.861
Manufacturer Bullet 1 Recess Type : Phillips
Manufacturer Bullet 2 Point Type : Self-Drilling No.5
Manufacturer Bullet 3 Effective Thread Length mm : 31
Manufacturer Bullet 4 Max Drilling Thickness mm : 12.0
Product Size 5.5mm x 65mm
Manufacturer Bullet 5 To Suit Timber mm : 14 - 29
Packaged Length mm 180mm
Packaged Width mm 90mm
Product Certifications BS EN 14592:2008 BS EN 10666 (DIN 7504)
Packaged Weight kg 1.861
Pallet Cage Width mm 290mm
Pallet Cage Length mm 402mm
Pallet Cage Height mm 220mm
Pallet Cage Weight kg 22.38
Pallet Cage Barcode 5055017532308
